01

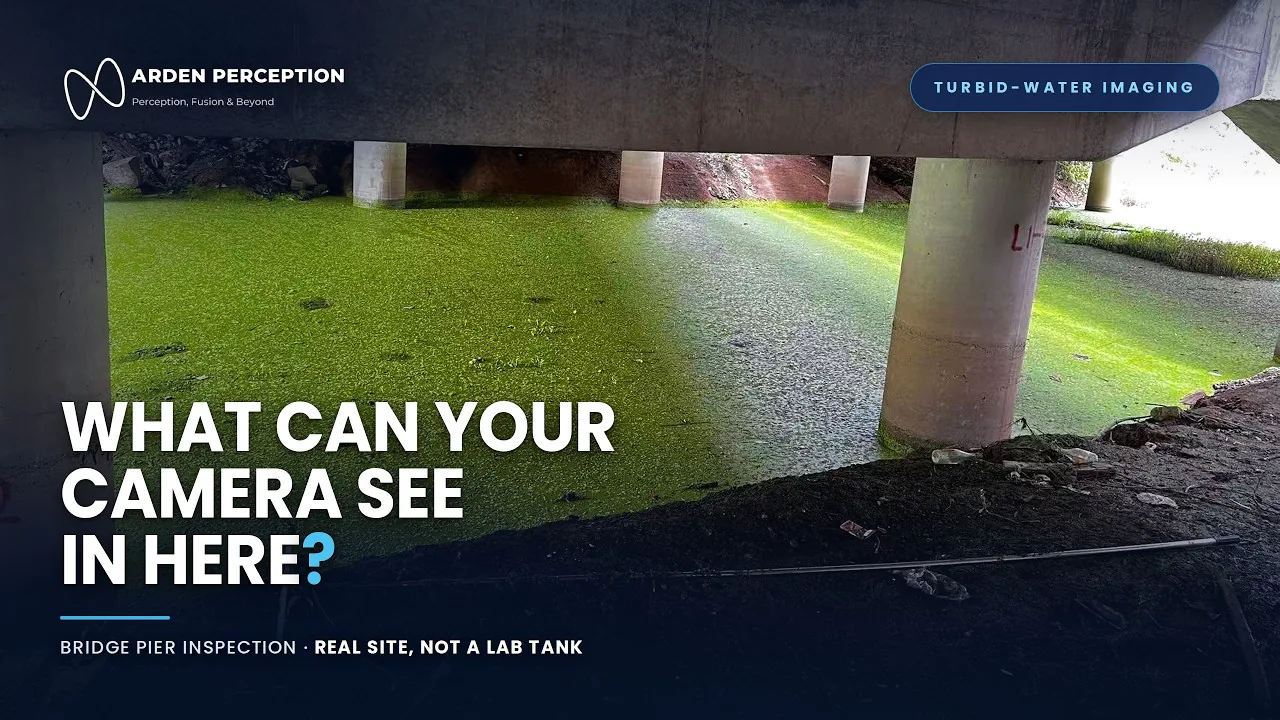

Water infrastructure
Inspect dams, gates, intake channels, bridge piers and submerged pipelines with a clear remote view.
Arden Perception · Underwater Vision
Precision vision for challenging water.
Engineered to reveal critical underwater detail when suspended sediment, scattered light and uneven illumination make conventional video difficult to use.

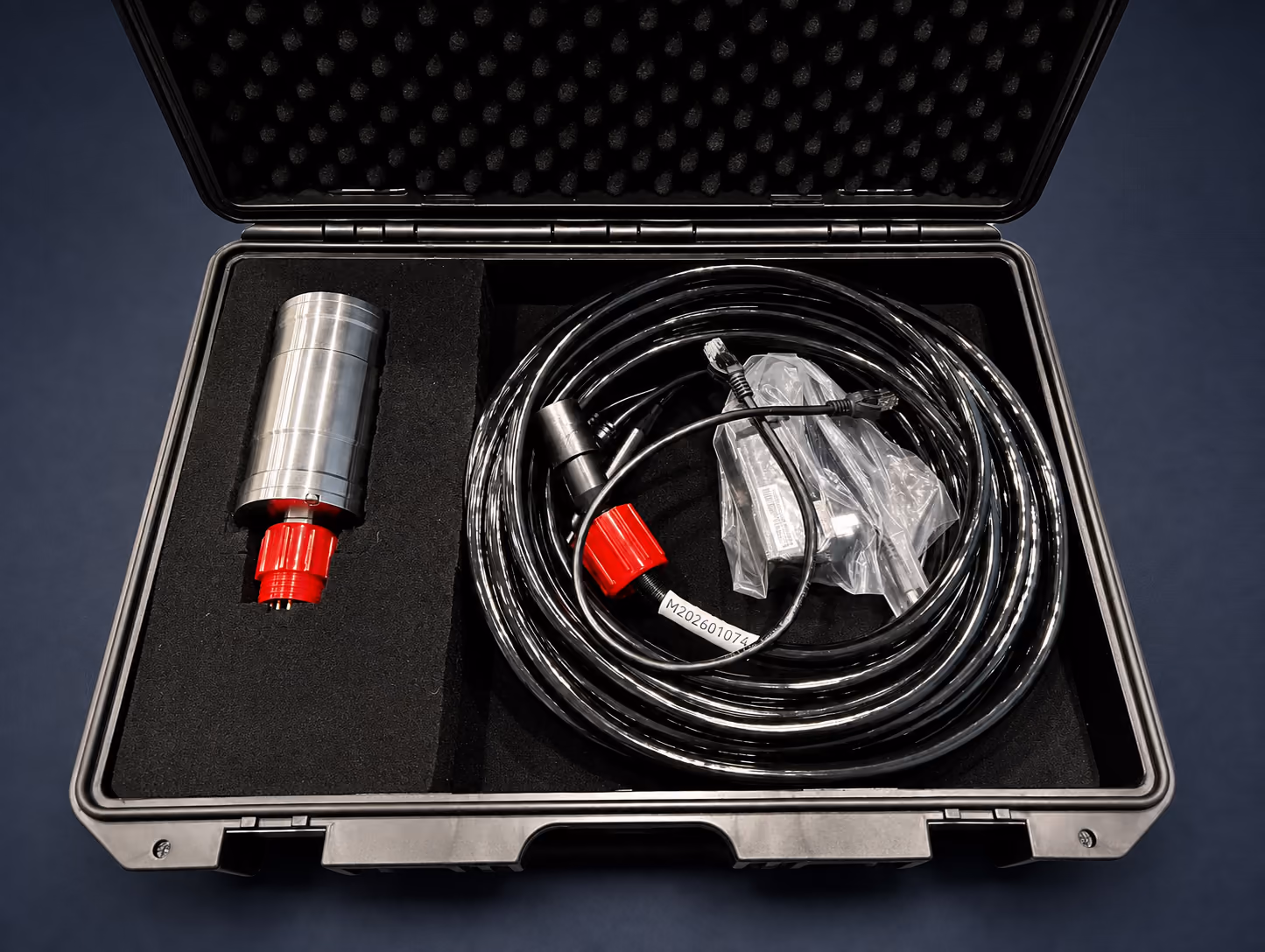

Camera data
Engineering-grade imaging for field deployment.
A robust imaging core with configurable optics, housing materials and depth capability for project-specific underwater work.
| Video output | 1920 × 1080 at 30 fps, real time |
|---|---|
| Interface | Adaptive Ethernet, RJ45 |
| Depth rating | Standard 0–300 m. Custom ratings available. |
| Operating temperature | −30 °C to +60 °C |
| Lens | 3.37 mm fixed focus as standard; custom optics on request |
| Housing | Stainless steel, titanium or aluminium |
| Image control | Automatic exposure and white balance for changing illumination |
Configure for the mission
Specified per project, not per catalogue.
- Custom lens options for specific viewing needs.
- Housing material chosen for the water and the deployment life.
- Custom depth ratings for demanding deployments.
- Integrated Ethernet video for robots and inspection platforms.
- Automatic exposure holds a stable image as light changes through the mission.
Image comparison
Turn low-visibility scenes into usable inspection data.
Enhanced contrast and scene detail help operators assess contours, bottom features and nearby targets with greater confidence.

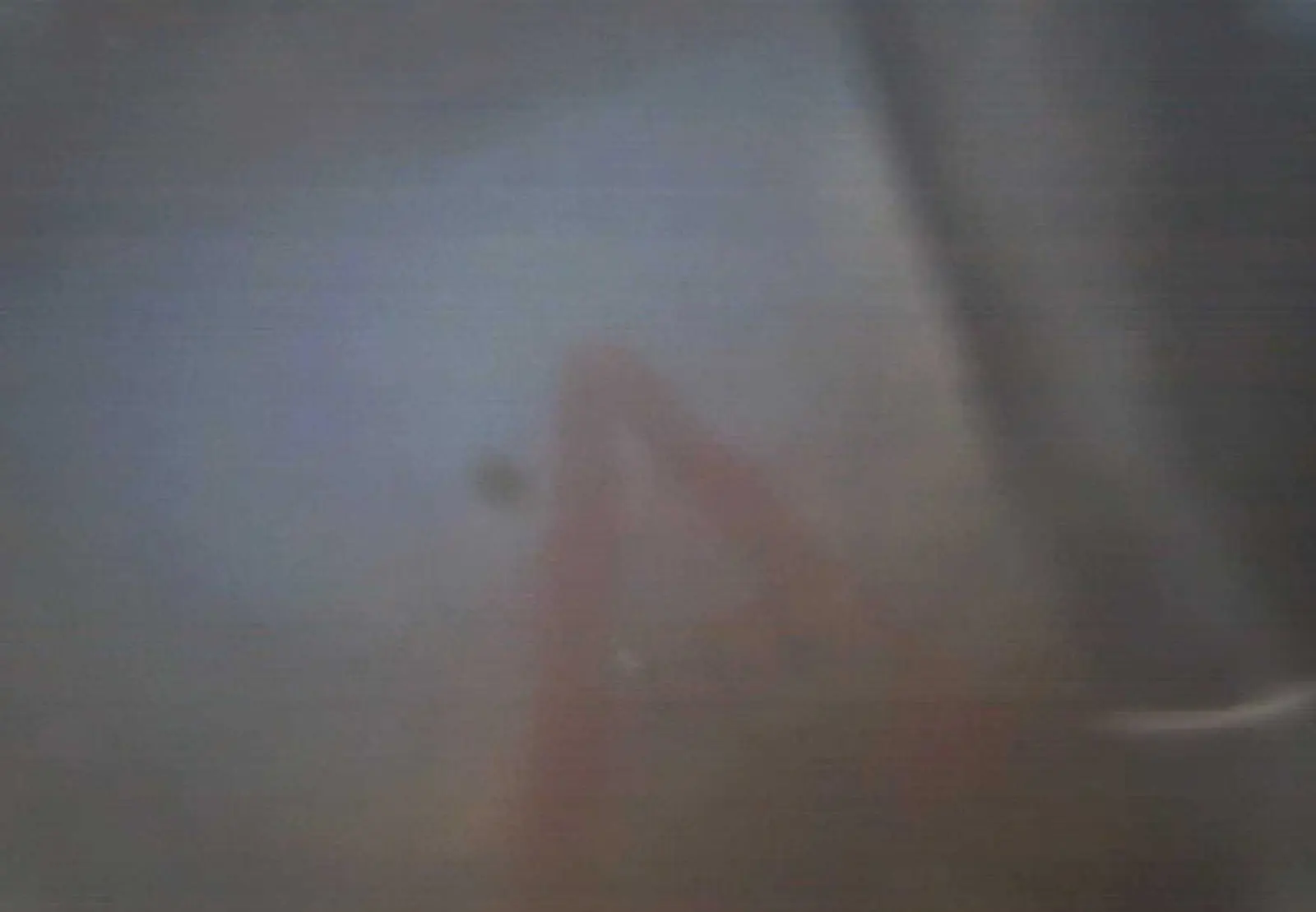

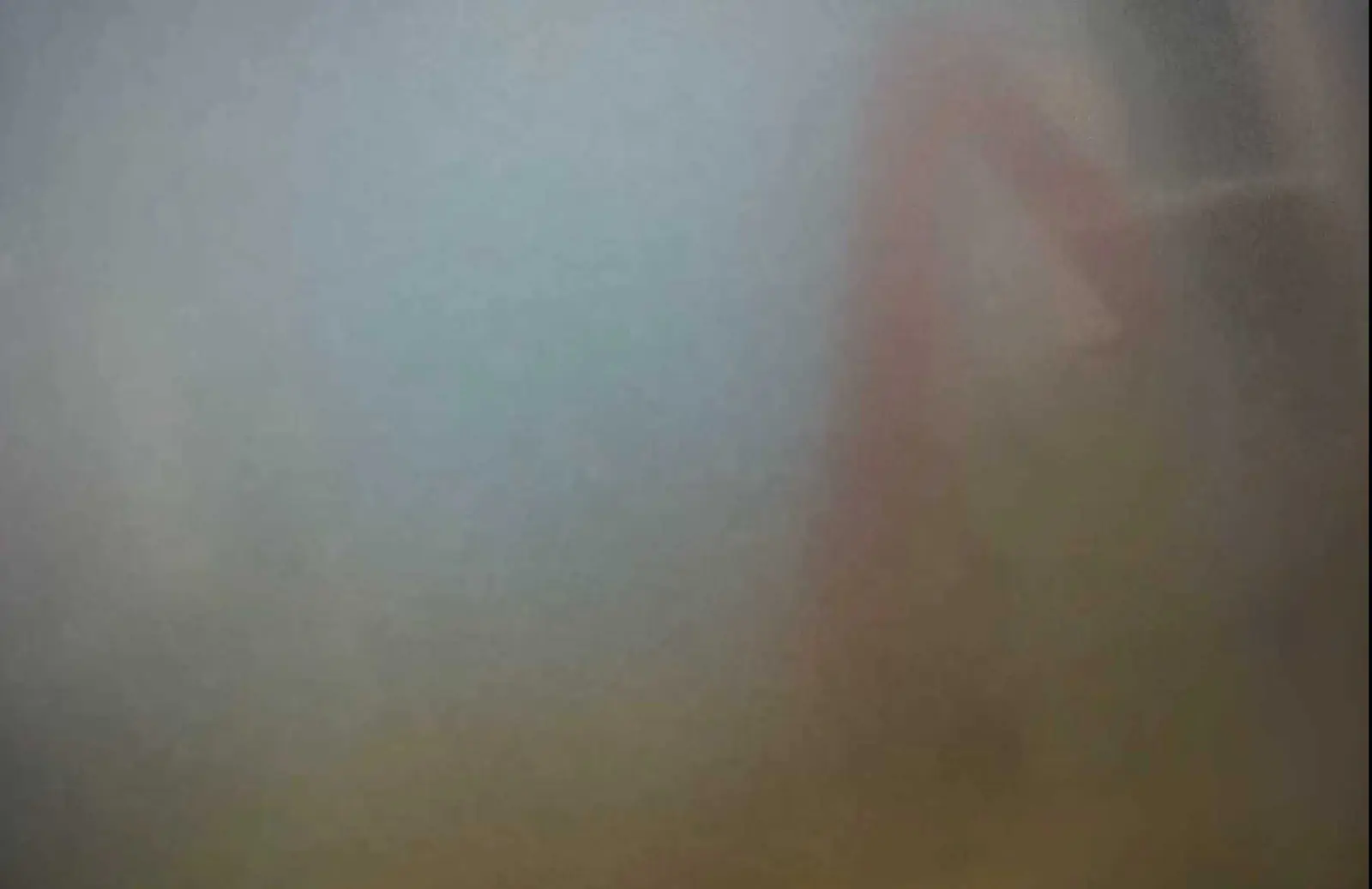

Field comparison
Real-world frames from turbid water.
Side-by-side frames supplied from our camera and a reference camera. The conditions were not strictly controlled.
In these supplied frames, our camera preserves more visible structure and tonal separation. Water conditions, target distance, lighting, optics and recording settings were not strictly controlled, so this is a directional field comparison rather than a controlled benchmark.
ROV integration
Deploy the camera on a stable, multi-sensor platform.
Combine this camera with sonar, lighting and navigation sensors for remotely operated low-visibility inspection.
View ROV underwater inspectionApplication scenes
Reliable vision across critical underwater operations.
Deploy the camera on the right platform when water clarity, physical access or diver safety limits a conventional visual inspection.
02
Hydropower maintenance
Support condition assessment, leakage investigation and maintenance planning around dam faces and gates.
03
Ports and offshore work
Inspect caisson quays, marine structures and offshore wind foundation areas in demanding conditions.
04
Aquaculture
Monitor cages, fish activity and facility condition to support daily aquaculture management.
05
Water networks
Improve the visibility of urban pipelines and enclosed water infrastructure with a robotic platform.
06
Survey and response
Support waterway surveys, environmental monitoring, underwater archaeology and search operations.
Contact
Send the water conditions and the platform you are using.
Tell us the turbidity, the working depth and how the camera will be carried. We will come back with the optics, housing material and depth rating to specify.
